Orchestra patio door

Uncompromising reliability and design

Learn More

Lift and Slide
Orchestra Patio Door

Harmonious blend of innovative

Learn More about Lift & Slide

Orchestra patio door

A full range of options to ensure the perfect fit for all your projects.

Slide Lift & Slide

Orchestra patio door

A full range of options to ensure the perfect fit for all your projects

Frame, Sashes, and Sill

Superior quality and reliability

Sturdy all vinyl 184mm (7 ¼'') mechanically assembled frame. Durable 89mm (3 1/2") sashes reinforced at stiles ensure optimal operation. Aluminum screen with easy leveling rollers for smooth sliding.

Watertight and airtight

Continuous double weather-stripping around the perimeter is quadrupled at sash corners for remarkable performance. The cavity draining system in the sill ensures exceptional water drainage.

Easy to maintain

Smooth and glossy interior and exterior vinyl-capped surfaces offer refined appearance and are basically maintenance-free.

Maximum energy efficiency

ENERGY STAR® qualified product. Meets the most demanding construction standards (AAMA/WDMA CSA 101/I.S.2/A440) and is an industry leader (PG55) for air (A3) and water (B4) tightness, wind resistance (C3) and security (F1).

Warranty

Warranty of 20 years on vinyl, 20 years on sealed units and 10 years on hardware.

Heightened security

Several options are available for enhanced forced-entry resistance.

  • Square fixed security bar (white, unstretchable)
  • Foot lock
  • Exterior key lock
  • 4-point multipoint locking system

Standard Dimensions

Heights: 79 ½'' or 81 1/8''

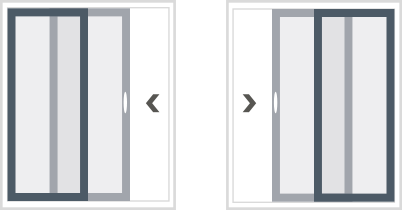

2 panels (0X/X0)

Widths: 58 ¾'' or 70 ¾'' or 94 ¾''

2 panels

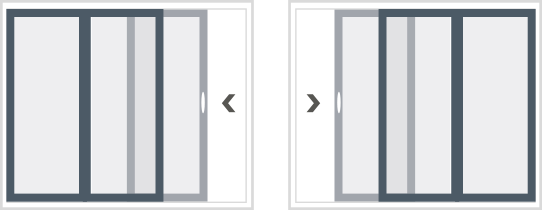

3 panels (00X/X00)

Widths: 84 9/16'' or 102 9/16'' or 138 9/16''

3 panels

3 panels (X0X)

Widths: 85 3/8'' or 103 3/8'' or 139 3/8''

3 panels

3 panels (X0X)

Widths: 88 3/16'' or 106 3/16'' or 142 3/16''

3 panels

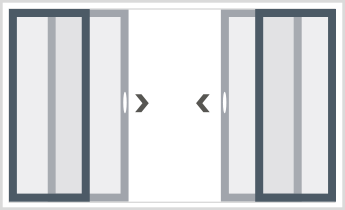

4 panels (0XX0)

Widths: 114'' or 138''


4 panels

Material

Sturdy frame and rigid sashes all PVC version or hybrid (aluminum exterior_and PVC interior). The hybrid version will be available end 2017.

Configurations and dimensions

Various configurations and dimensions appropriate for new construction and remodeling projects easily planned with a selection of configurations and sizes. Offered in 2, 3 or 4 panels.

Grid paterns

Various choices of grid patterns and SDL (Simulated Divide Lite) offered in varied patterns and muntins. Download the brochure (PDF)

Colors

More than 40 available colors for the interior and exterior. Base colors available in blue (1414) and cream-white (137).

View Color Chart

Other options

The following options "standards" are also available: brick moulding, sill and frame extension (interior and exterior) recovery, side panel, transoms, PVC Simulated Divided Bar, etc.

Glass

LowE glass with Argon 25.4 mm (1 ") or triple glass 31.8 mm (1 1/4") for excellent energy coefficient.

Warranty

Warranty of 20 years on vinyl, 20 years on sealed units and 10 years on hardware. Download the Patio Doors Warranty (pdf)

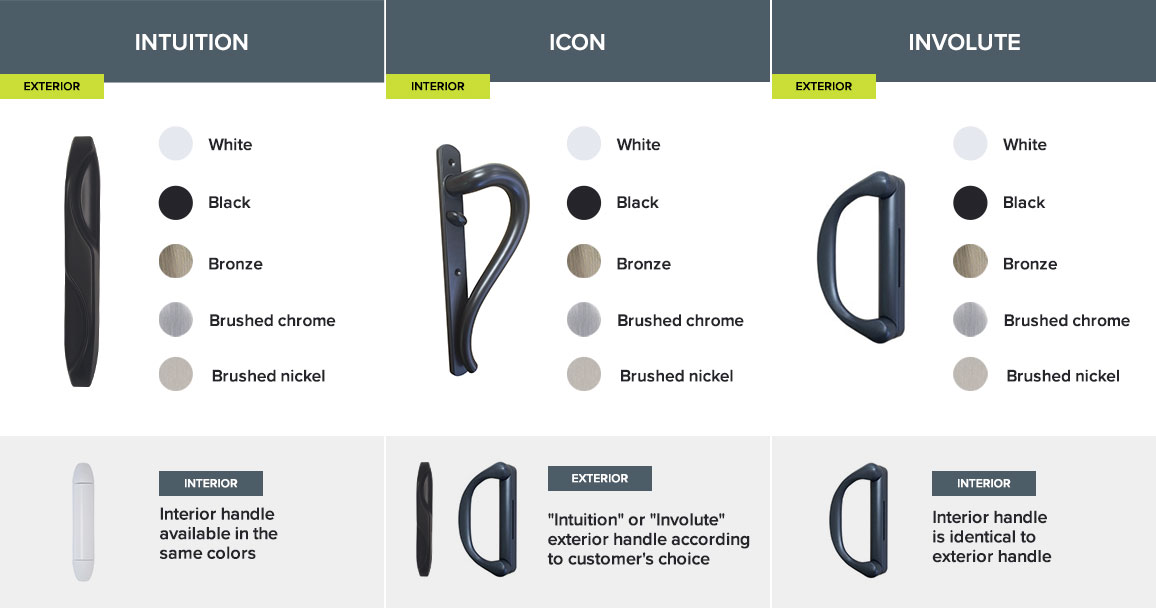

Handles

"Intuition" handle

Contemporary style interior handle with double mortise lock for enhanced security (available in white, black, bronze, brushed chrome and brushed nickel).

"Icon" stylish design handle

The "Icon" stylish design handle is offered with an integrated lock system, in five different finishes: white, black, bronze, brushed chrome and brushed nickel.

"Involute" Handle

Contemporary style interior handle with double mortise lock for enhanced security (available in white, black, bronze, brushed chrome and brushed nickel).

"Intuition" handle

D-handle with indoor lock only. Available in white, black, bronze, brushed nickel and brushed chrome, available for interior and exterior.

"Intuition" handle

Contemporary style interior handle with double mortise lock for enhanced security (available in white, black, bronze, brushed chrome and brushed nickel).

"Intuition" handle

Contemporary style interior handle with double mortise lock for enhanced security (available in white, black, bronze, brushed chrome and brushed nickel).

Key cylinder locking

Exterior key lock with key cylinder locking

Multipoint locking system

4-point multipoint locking system for enhanced forced-entry resistance.

Single-action handle lifts sliding door up from its airtight/watertight position. The door can then slide with ease on rollers along the track. Returning handle to its original position lowers door and engages airtight/watertight seal. Capacity of up to 600 Lb per sash.

Available sizing up to 172" width x 110" height for two-panel doors

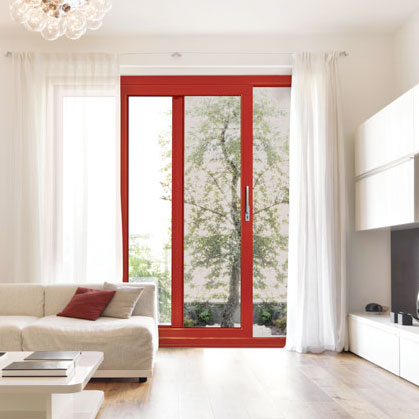

Lift and Slide Orchestra patio door

A full range of options to ensure the perfect fit for all your projects

Frame, Sashes, and Sill

Superior quality and reliability

Sturdy all vinyl 184mm (7 ¼'') mechanically assembled frame. Durable 89mm (3 1/2") sashes reinforced at rails and stiles ensure optimal operation. Aluminum screen door with easy-levelling rollers for smooth sliding.

Effortless sash operation

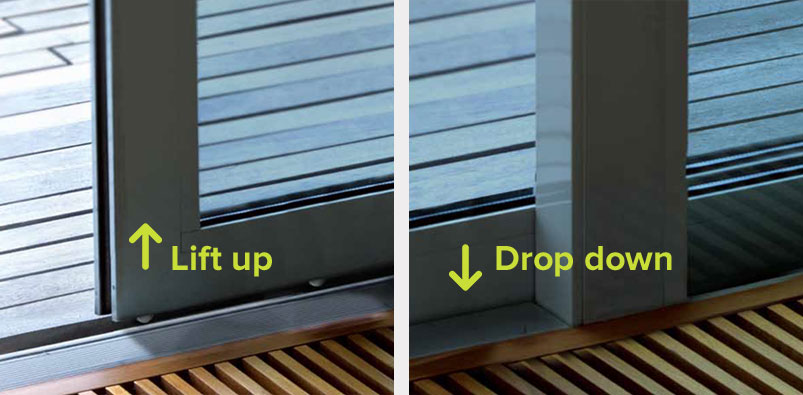

Lift and Slide doors feature specially designed hardware that breaks down "sliding" and "sealing" into two separate actions. Turning the handle 180 degrees releases the door from its closed position (with weather-stripping under compression) by lifting it up 1/2" above the track. The door can now slide effortlessly on its rollers, eliminating friction with and premature wear of weather-stripping material.

Watertight and airtight

Continuous double weather-stripping around the perimeter is quadrupled at sash corners for superior performance. On the Lift and Slide configuration, an additional weather-stripping is applied under the sash.

Maximum energy efficiency

ENERGY STAR® qualified product. Meets the most demanding construction standards (AAMA/WDMA CSA 101/I.S.2/A440) and is an industry leader (PG55) for air (A3) and water (B4) tightness, wind resistance (C3) and security (F1).

Easy to maintain

Smooth and glossy interior and exterior vinyl-capped surfaces offer refined appearance and are basically maintenance-free.

Easy to maintain

Smooth and glossy interior and exterior vinyl-capped surfaces offer refined appearance and are basically maintenance-free.

Heightened security

Several options are available for enhanced forced-entry resistance.

  • Aluminum security bar attached to the frame
  • Exterior key lock

Standard Dimensions

Heights: 79 5/8" or 81 1/4"

2 panels (0X/X0)

Widths: 58 5/8" or 70 5/8" or 94 5/8"

2 panels

3 panels (00X/X00)

WWidths: 84 3/8" or 102 3/8" or 138 3/8"

3 panels

3 panels (X0X)

Widths: 85 1/16" or 103 1/16" or 139 1/16"

3 panels

3 panels (0X0)

Widths: 88 1/16" or 106 1/16" or 142 1/16"

3 panels

4 panels (0XX0)

Widths: 113 7/8" or 137 7/8" or 185 7/8"

4 panels

Frame, Sashes, and Sill

Material

Sturdy frame and rigid sashes all PVC version or hybrid (aluminum exterior_and PVC interior). The hybrid version will be available end 2017.

Configurations and dimensions

Various configurations and dimensions appropriate for new construction and remodeling projects easily planned with a selection of configurations and sizes. Offered in 2, 3 or 4 panels.

Glass

LowE glass with Argon 25.4 mm (1 ") or triple glass 31.8 mm (1 1/4") for excellent energy coefficient.

Grid paterns

Various choices of grid patterns and SDL (Simulated Divide Lite) offered in varied patterns and muntins.

Colors

More than 40 available colors for the interior and exterior. Base colors available in blue (1414) and cream-white (137).

Handle and hardware

Aluminum security bar attached to the frame, Exterior key lock with key cylinder locking

Other options

The following options "standards" are also available: brick moulding, sill and frame extension (interior and exterior) recovery, side panel, transoms, etc.

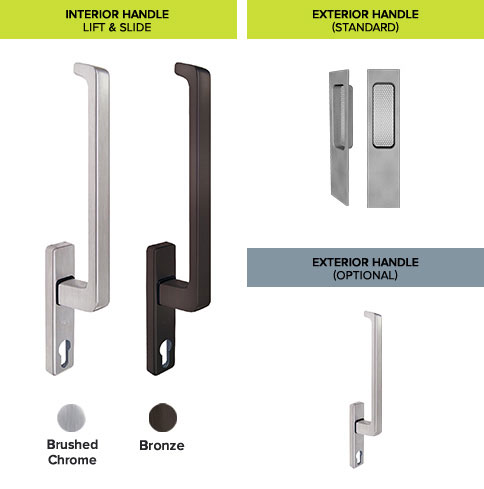

Lift & Slide handle

The Lift & Slide handle lets you operate the sash effortlessly, and the multi-point lock enhances forced-entry resistance.

Standard Exterior Handle

Flush pull handle with no key lock.

Colors available: Grey and Bronze.

Optional Exterior Handle

Exterior Handle Lift & Slide + Exterior key lock with key cylinder locking.

Colors available: Brished Chrome brossé and Bronze.

Personalize your patio door

Window & door frames and other building materials coated with our PVC, composite, wood and metal (as approved) colorizing system gives customers more options and better color protection than ever before.

  • Over 40 popular color choices.
  • Safe, waterborne, environmentally friendly.
  • Proven durability in all weather conditions; no peeling, flaking or cracking.
  • Specifically formulated for adhesion to vinyl, for lasting color vibrancy.
  • Expanded color and gloss retention
  • High abrasion and humidity resistance.
  • Designed to meet all international standard requirements.
  • Custom colors available on request.
View Color Chart
